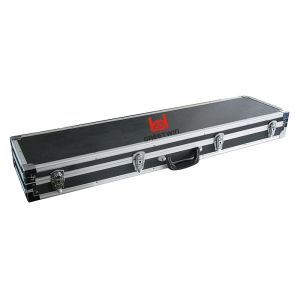

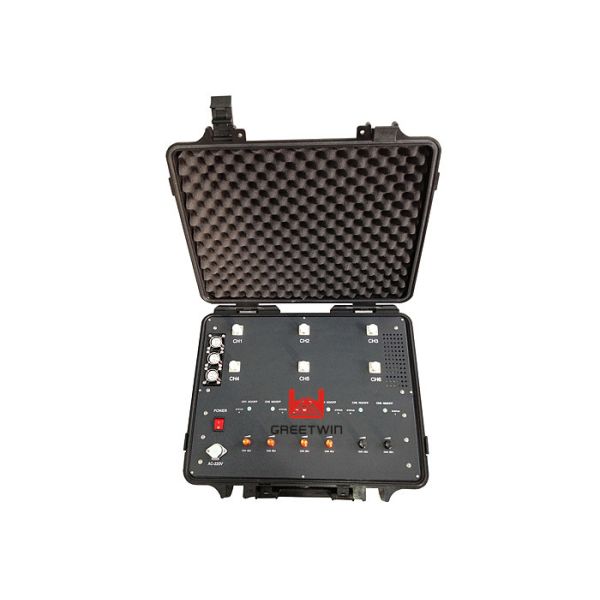

Portable Bomb 600W Manpack Jammer Radio Frequency Luggage Case
Manpack Jammer Introduction:
GW-VIP JAM6 will jam CDMA,GSM,DCS,3G,WCDMA,WIFI,GPS frequency, specially
designed for military RCIED disposal, Briefcase Jammer is a
wide-band portable jamming system, designed for the protection of
VIP's and groups of people from radio controlled improvised
explosion by disabling the radio exploder control lines in
dangerous areas and for the prevention of leakage of information
through intercepting units during confidential talks. Briefcase
Jammer transmits RF interference and creates a "Radio Frequency
Protected Zone" around the object that prevents remote controlled
bomb activation by various RF means in its vicinity with a
sufficient jamming safety radius, in order to save lives and
prevent serious injuries. Briefcase Jammers are also deployed to
guard forces in the field, Dignitaries and VIP's, checkpoint and
border rossings, roadblocks, Embassies, Police and Government
offices etc. Briefcase Jammer are available in various models as
per the frequency and output power. However these jammers can be
customized as per the user requirements.
Manpack Jammer Advantages:
- High-power multi-band jammer, Frequency Scan technology,
- Modular construction for easy maintenance, repair and upgrade.
- Jamming up to SIX different jamming modules.
- Max 600watts total RF output power.
- AC mains or DC power.
- Systematic Smart Cooling System.
- The general design of the system meets military requirements.
- Different frequency bands can be controlled independently by single
switches;
- Power Amplifiers protection design ensures the working reliability
of the device
Manpack Jammer Application:
Bomb disposal squads, VIP protection, Special Police (S.W.A.T),
military security forces, bomb squads, anti-terror units, anti-drug
units, Border control units, checkpoint personnel.
Manpack Jammer Technical Specification:
Can customize these frequencies AM, FM Radio, VHF, UHF, 450MHz,
iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA, LTE 700, LTE 800, LTE
2300, LTE 2600, GPS, Galileo, Compass, Glonass,WIFI, WIMAX, UAV,
drone, etc.
| Output interface | Description | Shield band of frequency | RF output power |
| CH1 | CDMA800 | 851-894 MHz | 50dBm |
| CH2 | WCDMA 3G | 2110-2170 MHz | 50dBm |
| CH3 | GSM900 | 925-960 MHz | 50dBm |
| CH4 | GSM1800 /PCS 1900 | 1805-1880 MHz /1930-1990 MHz | 50dBm |
| CH5 | WIFI, 2.4G(Optional) | 2400-2485 MHz | 50dBm |
| LTE800(Optional) | 790-821 MHz | 50dBm |
| CH6 | GPS L1(Optional) | 1570-1580 MHz | 50dBm |
| LTE 2600(Optional) | 2620-2690MHz | 50dBm |
| Power supply: AC220V, DC24V |
| Total Output Power: 600Watt |
| Power consumption:1800Watt |
Weight: 35Kg Size(length × wind × high):580×280×410mm |
| Humidity: 30%-95% Running Temperature: -20℃ to +55℃ |
| Jammer Module Number | 6 |
| Cooling System | Systematic Smart Cooling System |
| System Protection | VSWR, Over-voltage |
| Jamming Source | Frequency Scan Technology |
| Antenna Type | High Gain Omni-directional Antennas |
| Number of Antennas | 6 |
| Outside Battery (Optional) | 24V DC |
| Jamming range: 50-500m according to signal density of mobile
network |
